Heavy Duty Quick Release Awning Brackets - ARB Base Rack Mount
Fits the heaviest 180° and 270° awnings including Outback, The Bush Company, Kings and Bushwakka.
What's In The Box
- Top Quick Release Plate with Built In Indexing PinOne per bracket

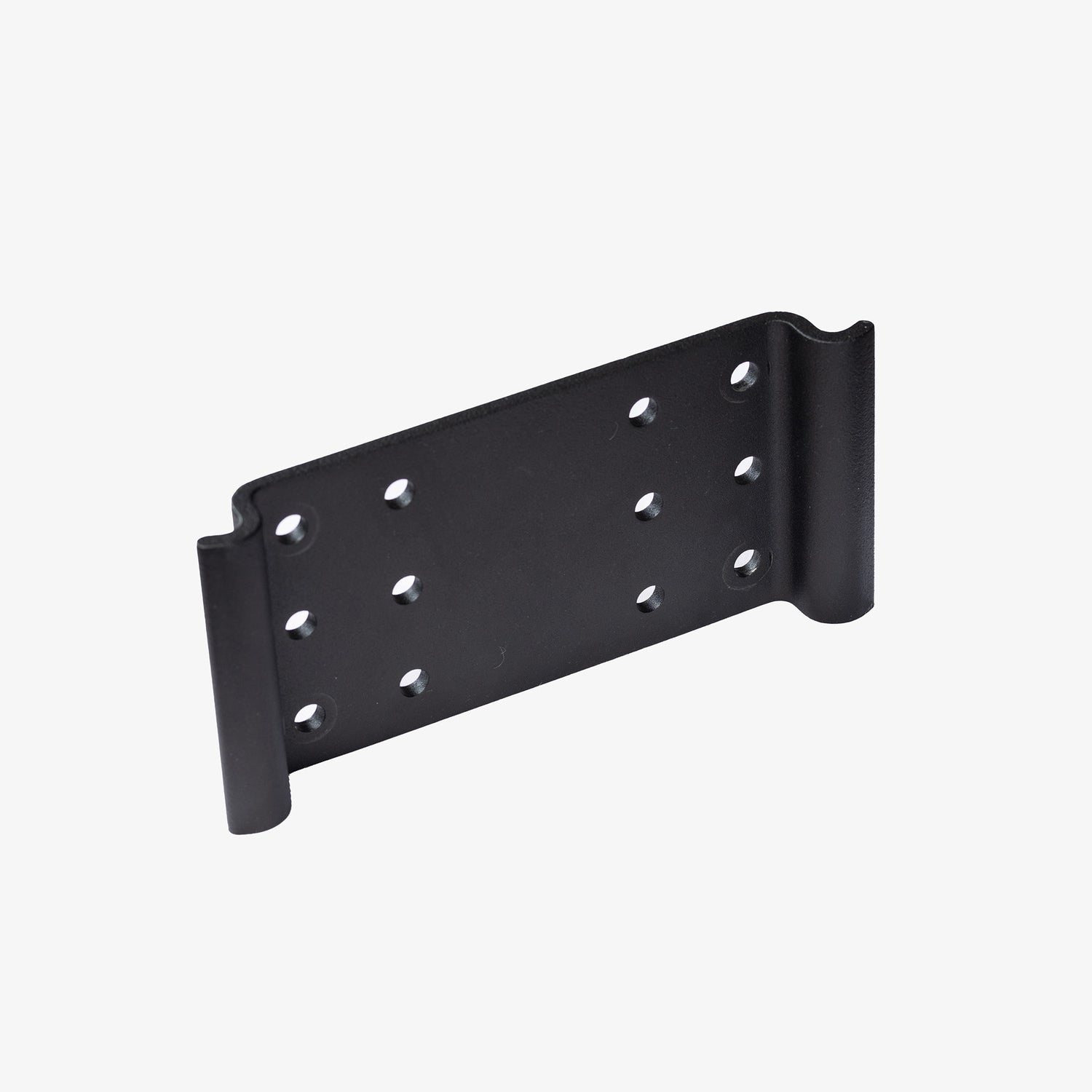

- Bottom Clamp PlateOne per bracket

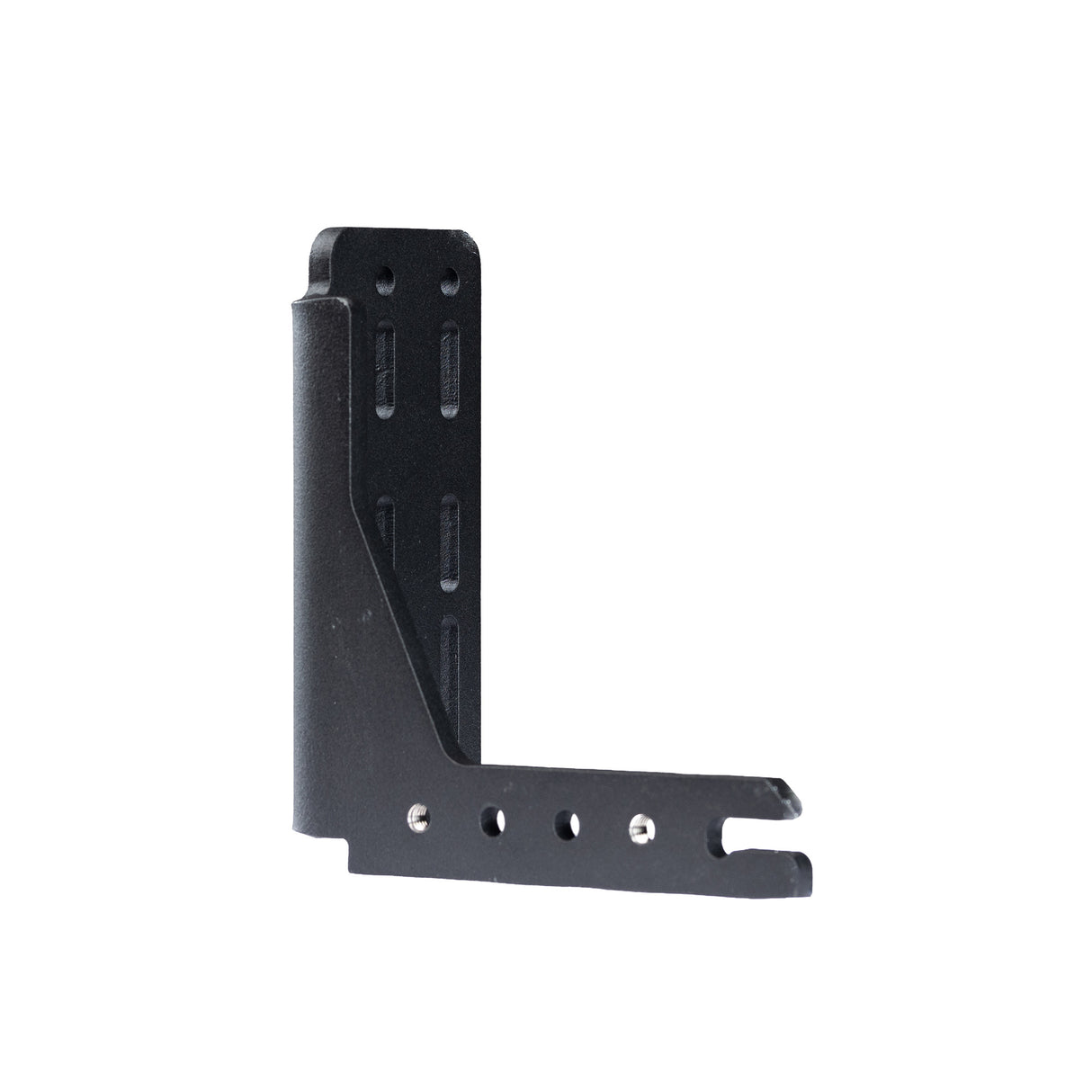

- Awning PlateOne per bracket
- Knurled Anti Rattle Thumb Screw BoltOne per bracket

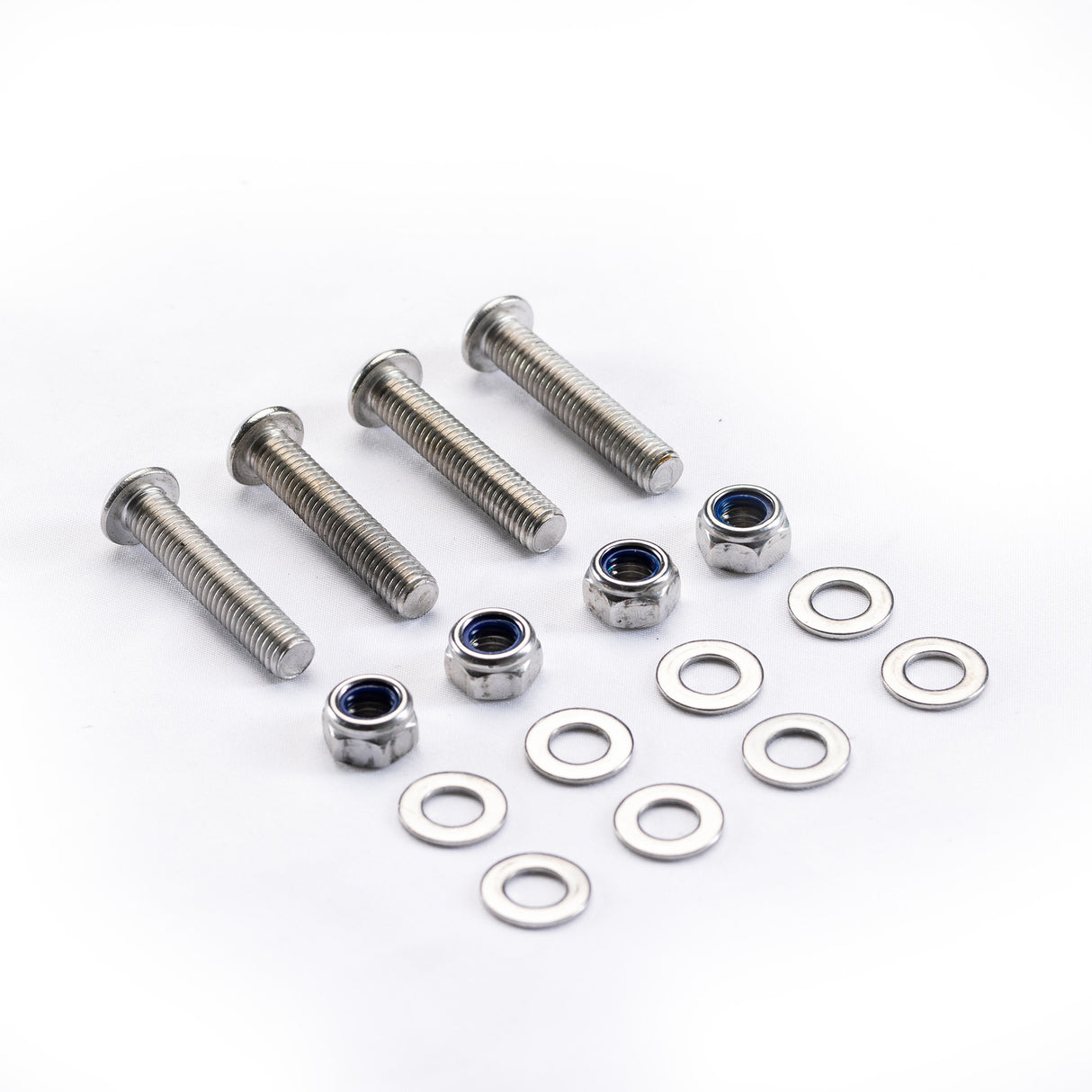

- SS M8 FastenersFull set of stainless M8 hardware for every bracket in your configuration
Specifications
Specifications
ARB Base Rack Quick Release Brackets

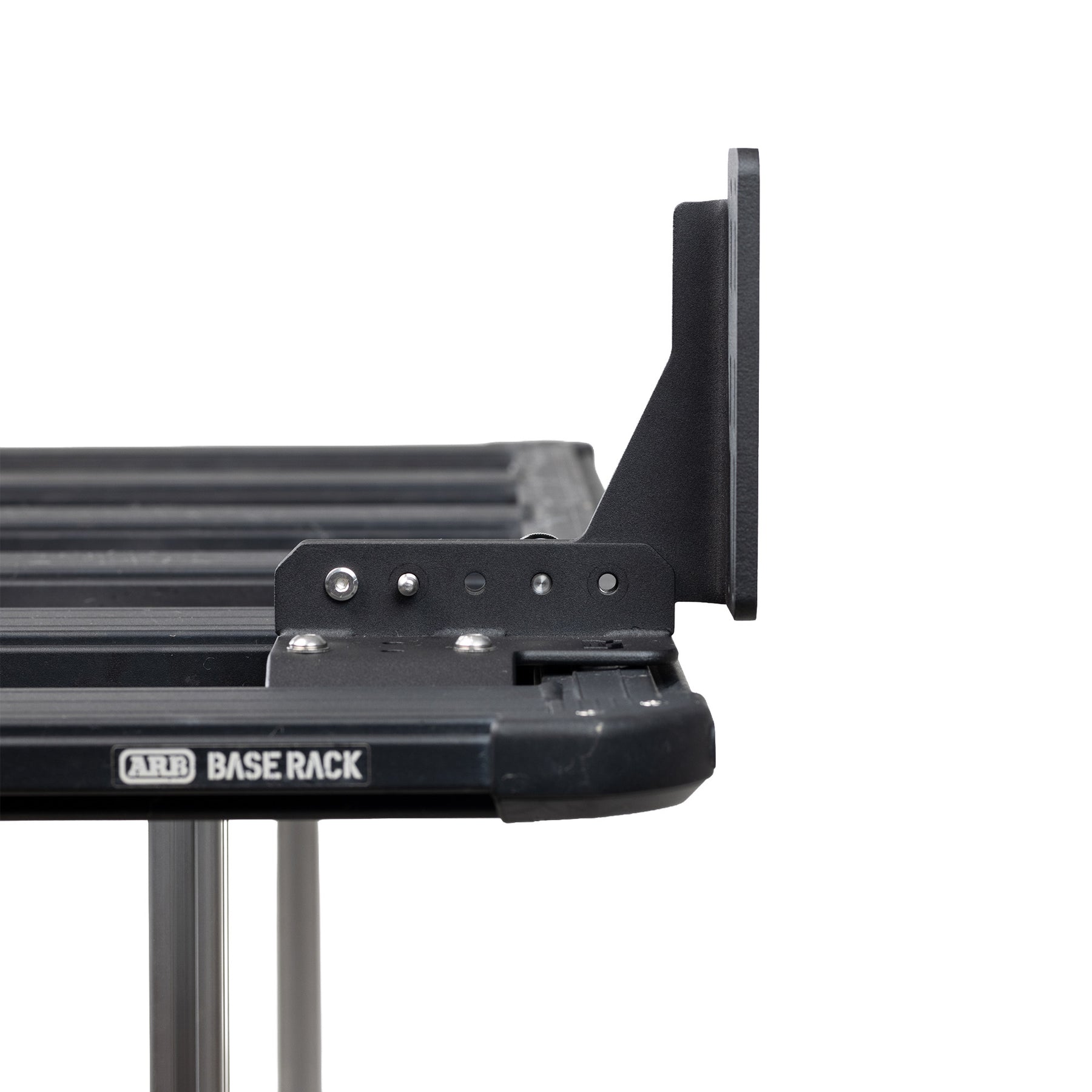

- Construction: 5mm and 8mm 304 stainless steel
- 50kg per bracket load rating
- Weight: 3.6kg per bracket
- Parts per bracket: awning plate, top plate, bottom plate

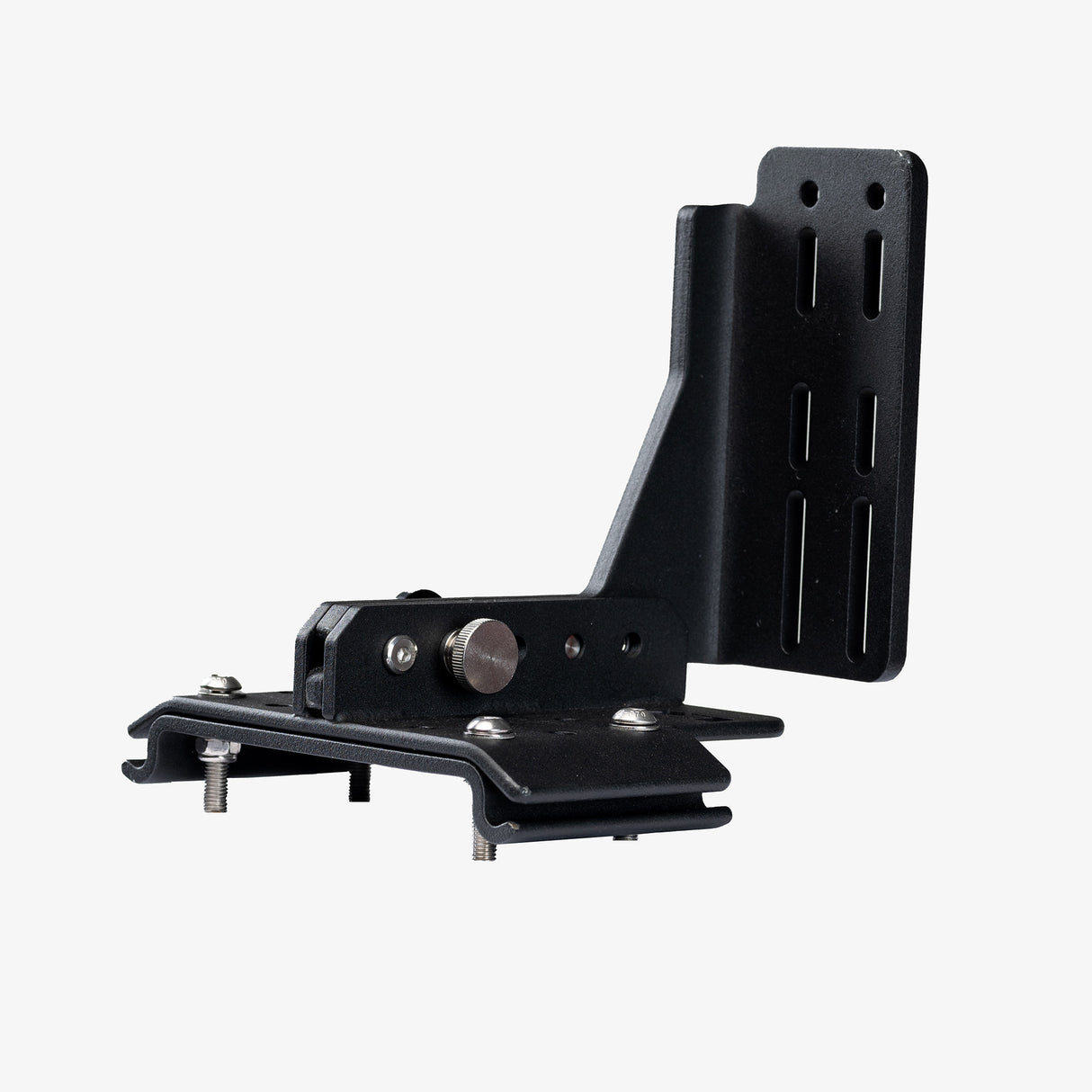

- Mounting: clamps to the ARB Base Rack dovetail rail, no drilling
- Finish: textured black powder coat
- Features: built in indexing pin, knurled anti rattle thumb screw, slotted height adjustment, threaded holes for anti tamper bolts
Delivery & Shipping
Pre Order, Ships 30 October
Pre orders ship in the order they were placed via Australia Post. Standard and Express available, calculated at checkout.
Tracking details will be emailed or sent via SMS once your order is dispatched.
Heavy Duty Quick Release Awning Brackets - ARB Base Rack Mount
BUILT TO BE EASY

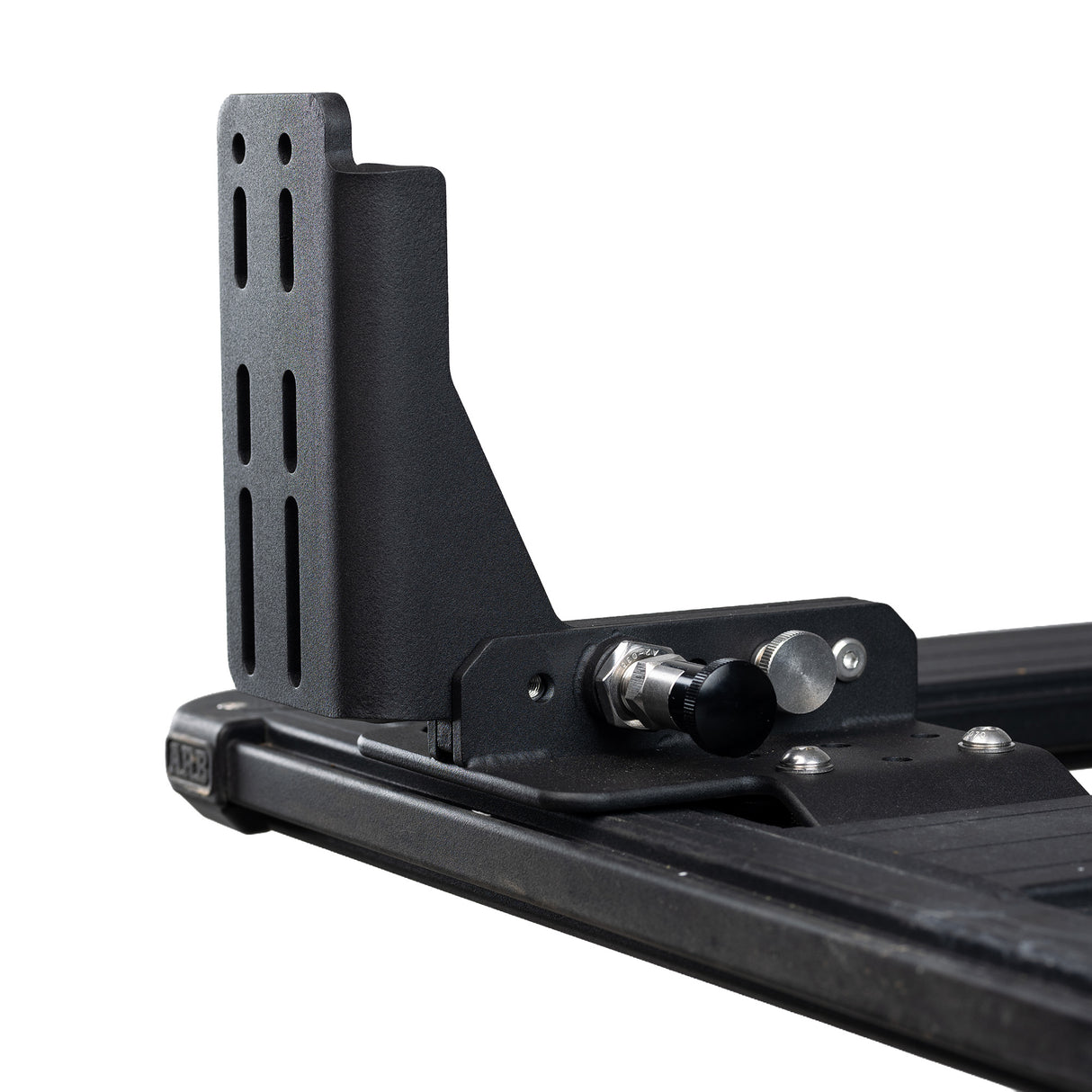

Built For The Dovetail

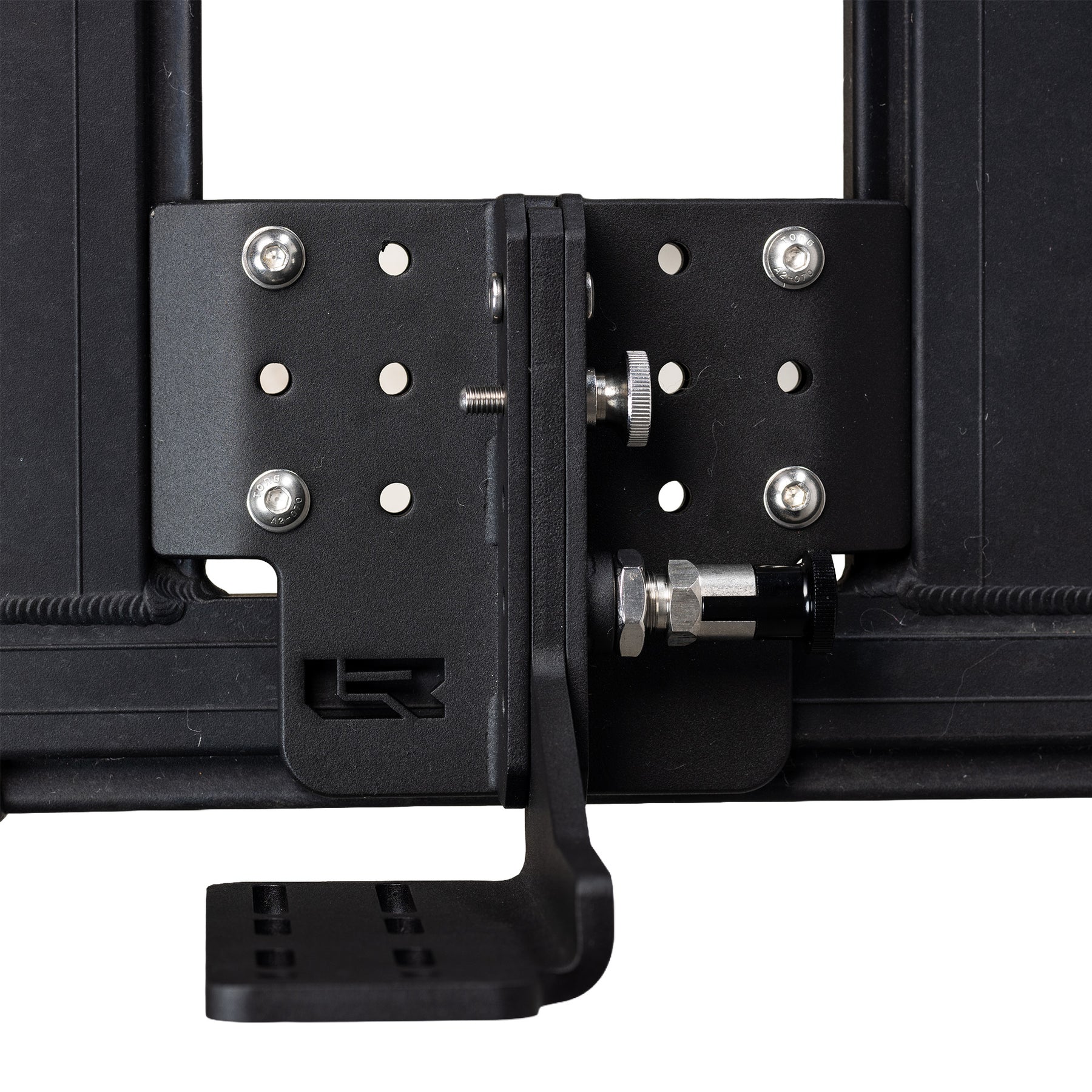

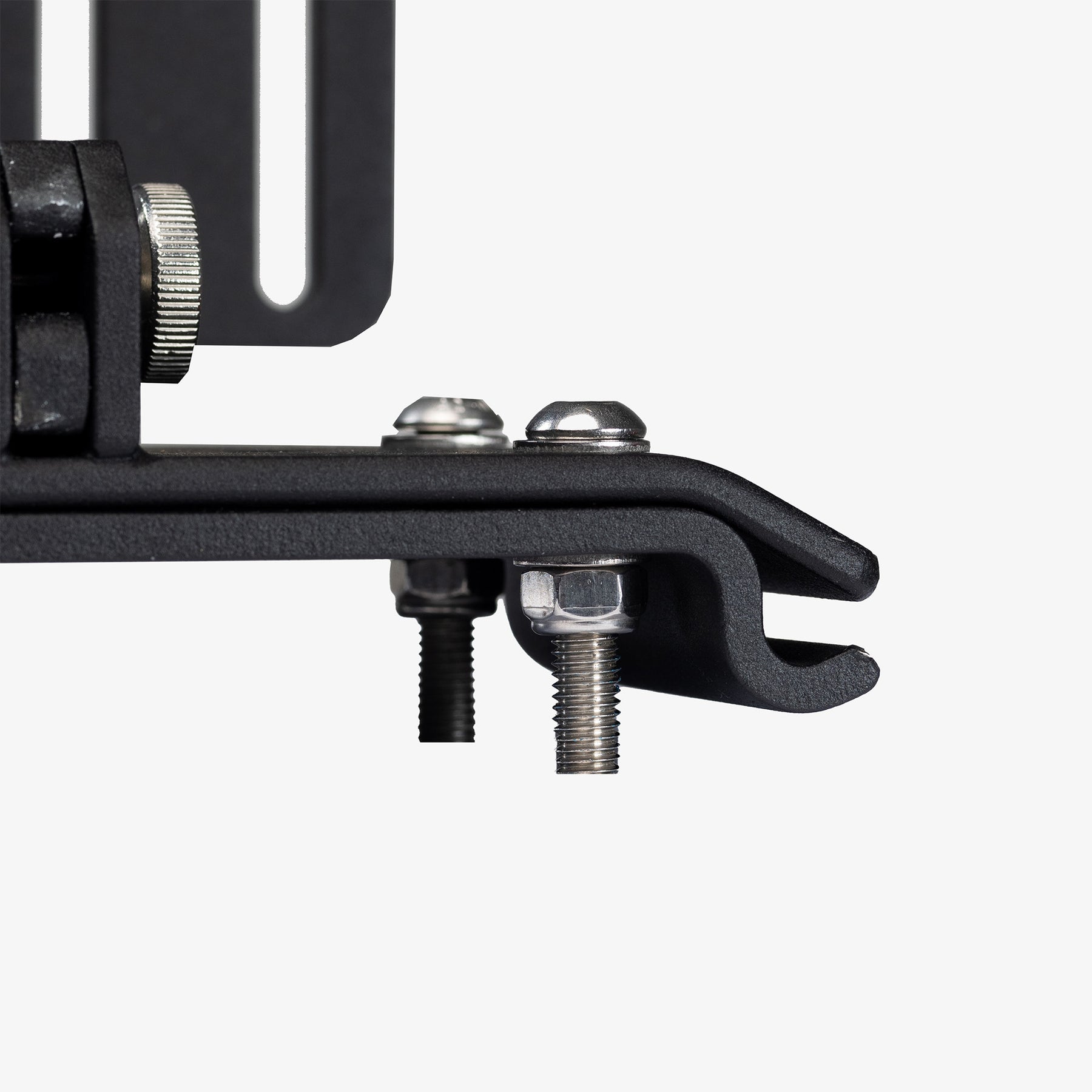

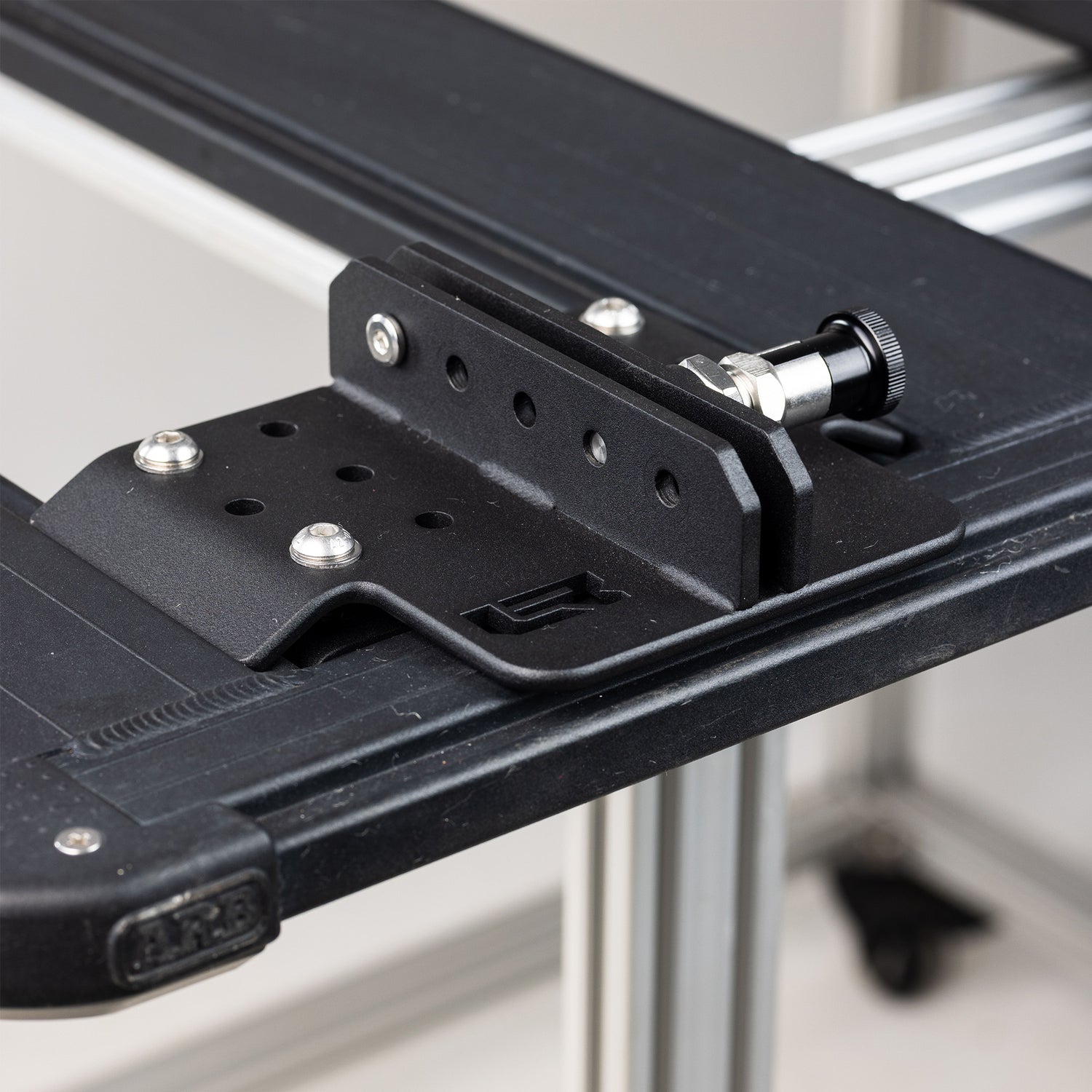

Top and bottom plates sandwich the Base Rack rail for a full clamp that spreads load across the extrusion instead of pinching a single point.
Over Engineered Stainless
5mm and 8mm 304 stainless, rated to 50kg per bracket and finished in textured black powder coat. The heaviest duty bracket we have ever made.
On & Off In Seconds

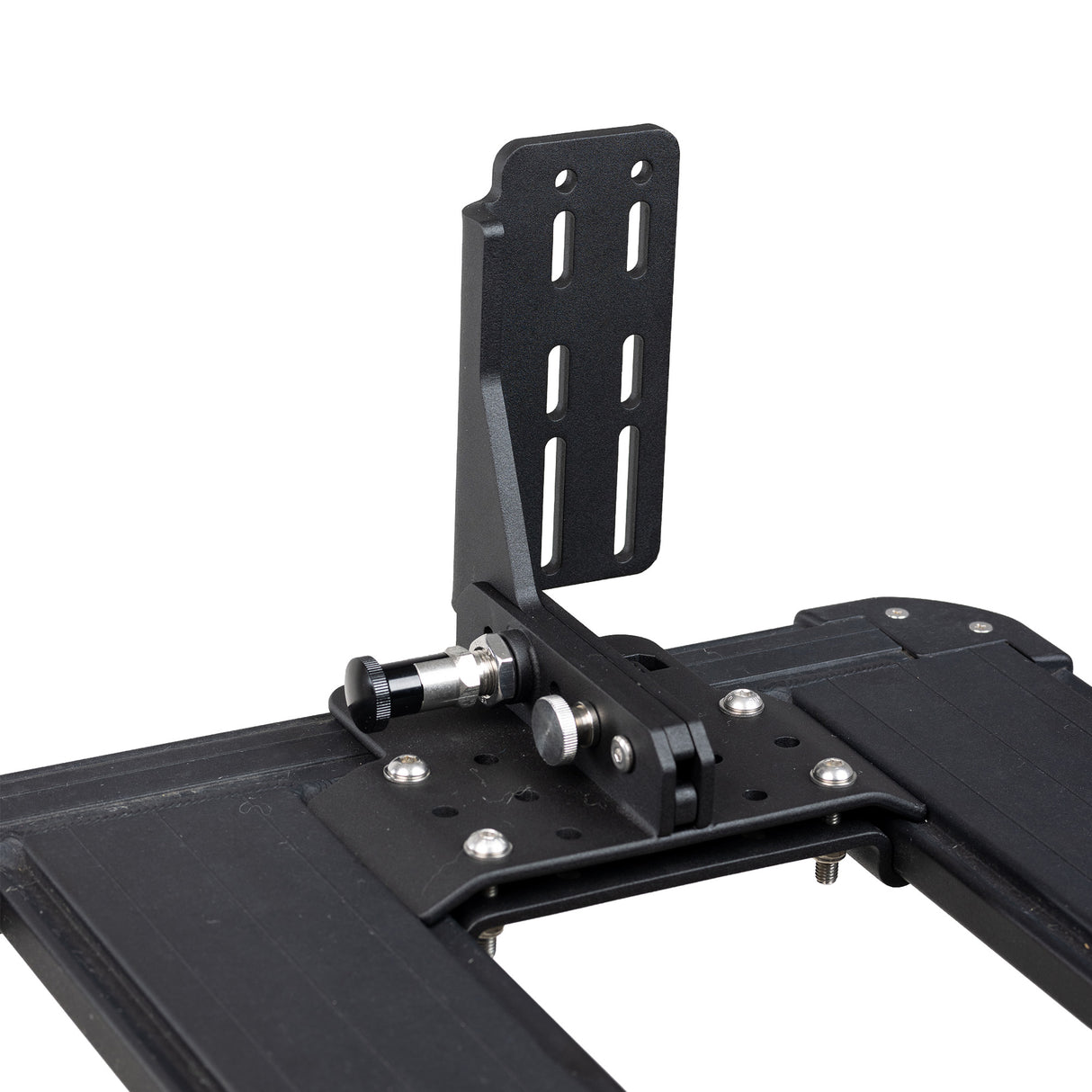

Undo the thumb screw and lift the awning off the indexing pin. Your Base Rack is clear for the next job. Drop it back on and nip up the thumb screw when it's time to head off.

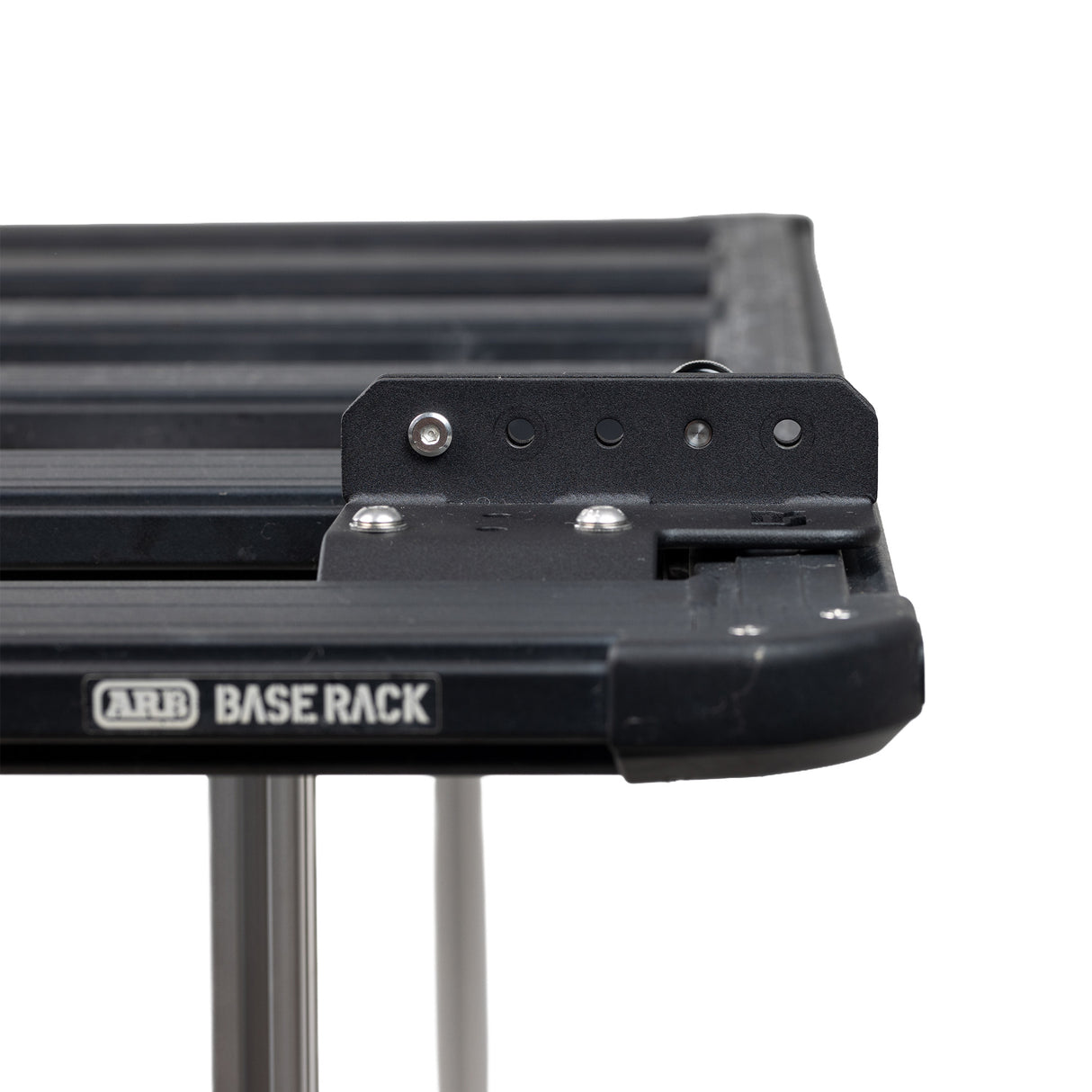

Anti Tamper Ready
Extra threaded holes take anti tamper bolts so your awning stays your awning, at camp or in the car park.

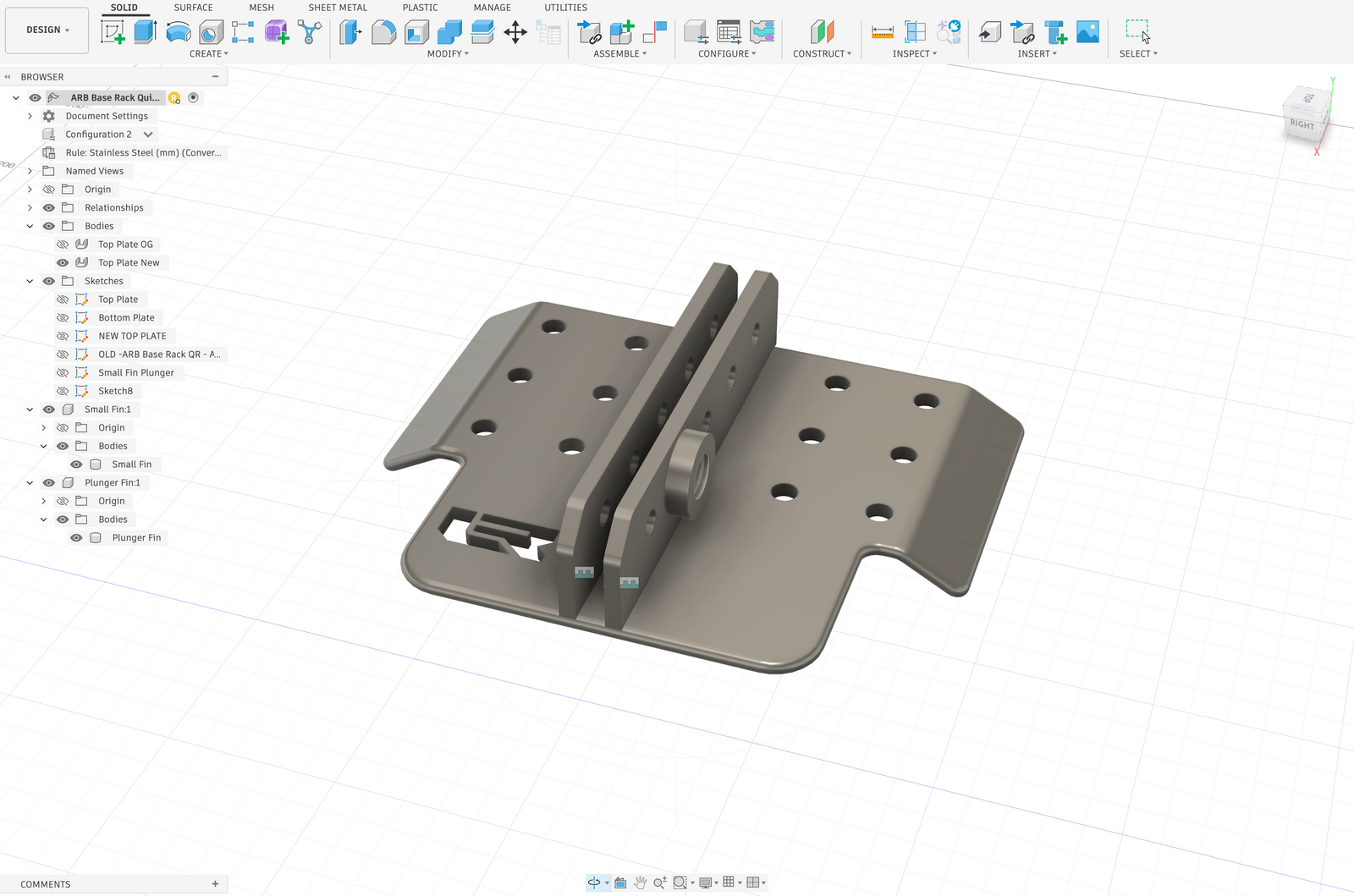

3.6KG OF STAINLESS PER BRACKET. YES, WE KNOW.
Most awning brackets are folded from 3mm and hope for the best. This one is cut from 5mm and 8mm 304 stainless and welded into a three plate clamp that grips the full Base Rack extrusion. It is the heaviest bracket we make, and that is the point. A 270 awning on corrugations puts brutal loads through the mount. We built for that, not for the brochure.

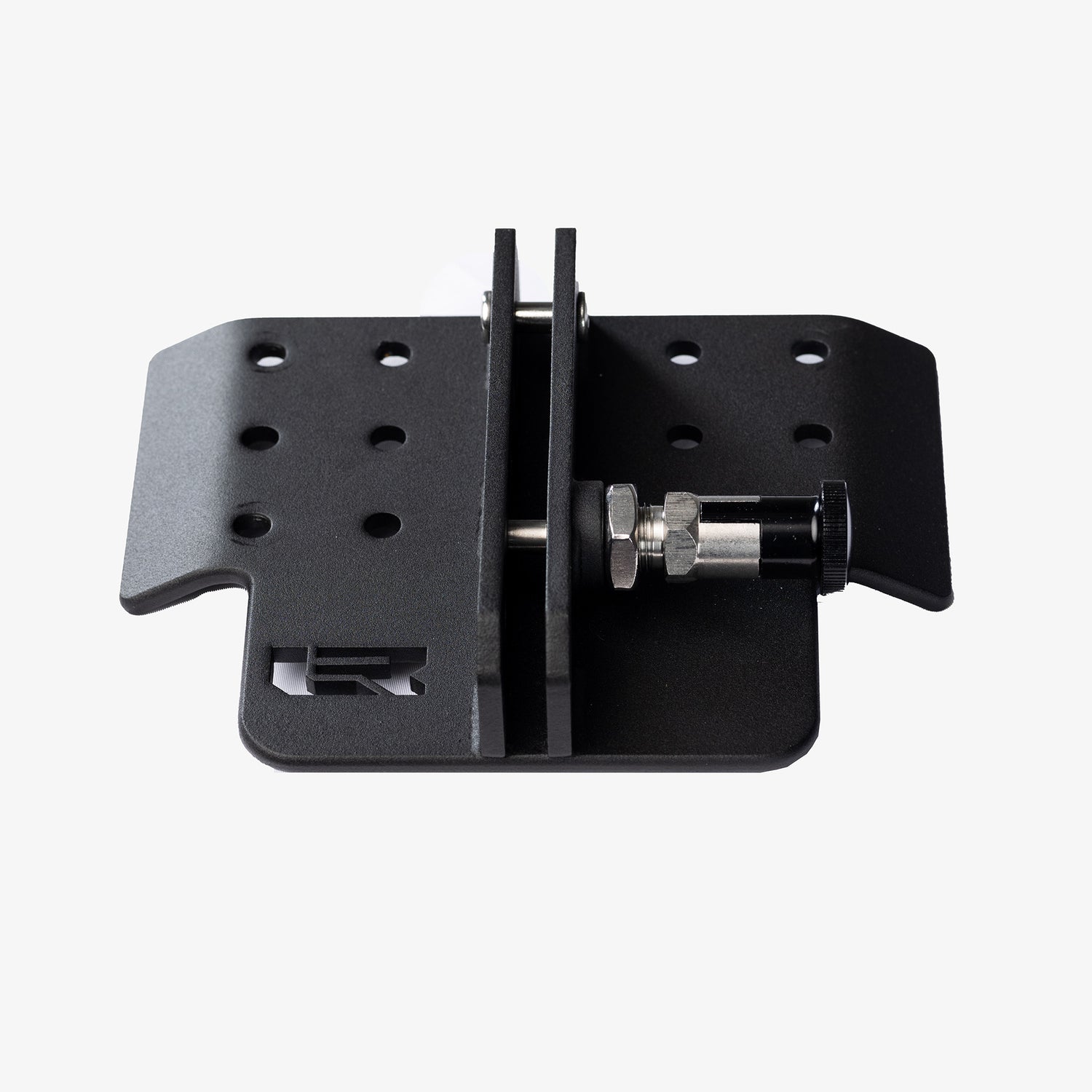

- Three plate clamp. Top and bottom plates sandwich the dovetail so load spreads across the rail, not a single pinch point.

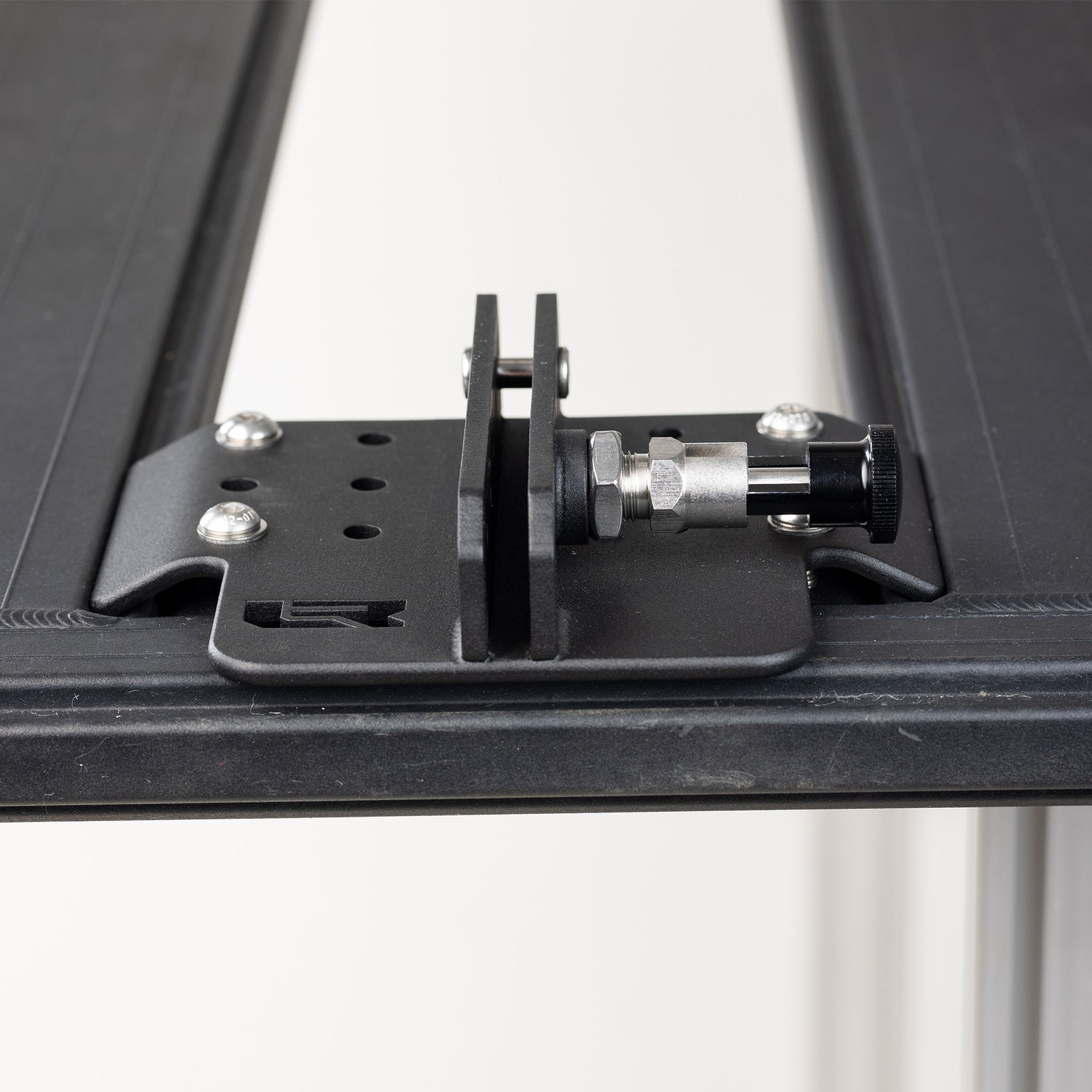

- Built in indexing pin. Machined into the top plate. The awning plate drops onto it and locates itself, no loose pins to lose or fumble.

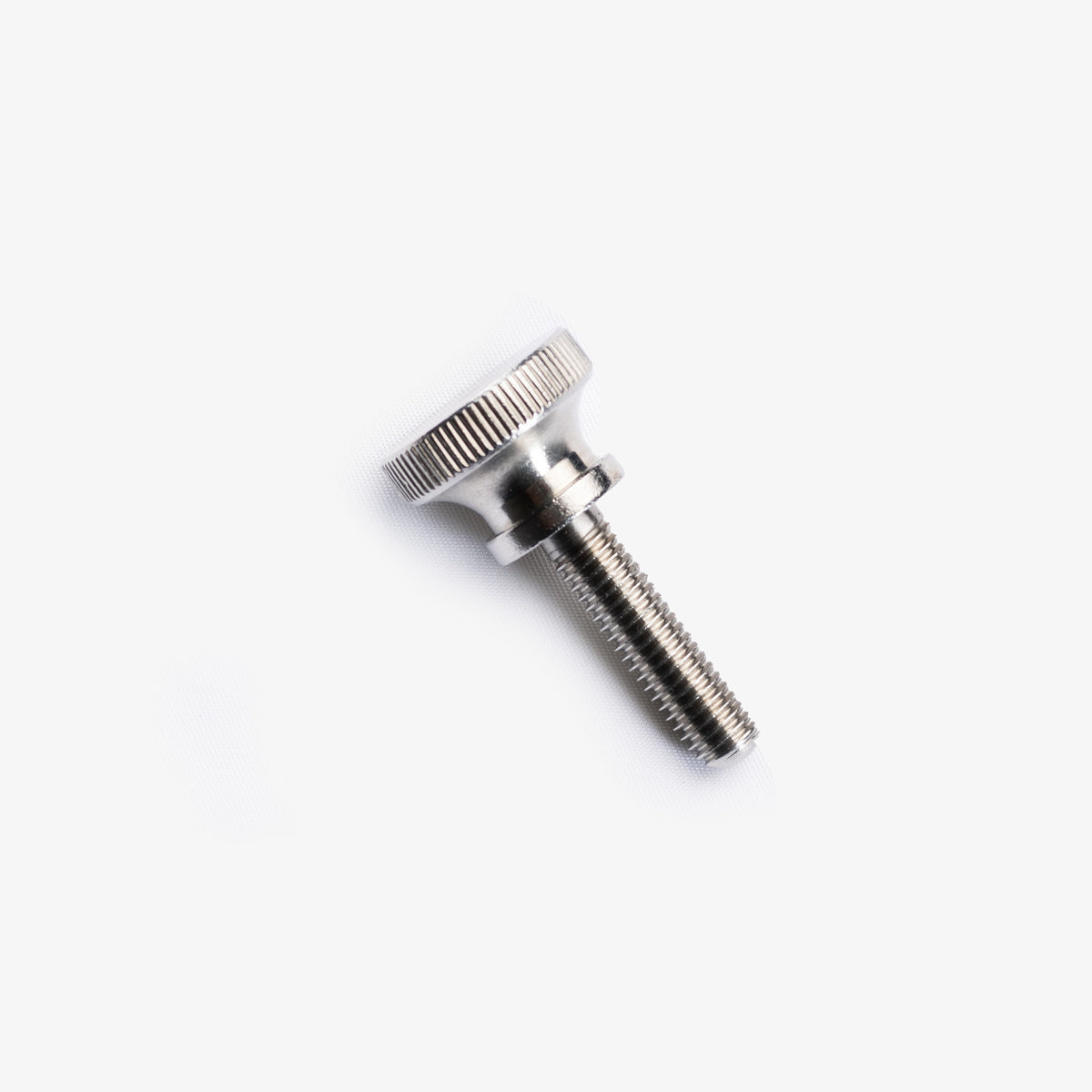

- Knurled anti rattle thumb screw. One turn locks the awning plate down solid. No rattle, no tools, no bolts to strip.
- Rated to 50kg each. Two brackets carry the biggest 270 awnings on the market with margin to spare.
- Anti tamper. Extra threaded holes for anti tamper bolts when you want it locked down for good.
You will not think about this bracket again after you fit it. That is what you are paying for.
HOW IT STACKS UP
What you get compared with the typical awning bracket for the ARB Base Rack.
Competitor column reflects the common ARB Base Rack awning bracket options on the market at time of writing. Check the specs of any bracket you are comparing.
Description
Description
PRE ORDER. First batch of 50 units. Ships 30 October. Pre orders ship first, in the order they were placed, and your price is locked in at checkout.
Land Raxx Heavy Duty Quick Release Awning Brackets for the ARB Base Rack
Rated to 50kg per Bracket
There is nothing else like this on the market. This is the only quick release awning bracket built specifically for the ARB Base Rack. No drilling, no adaptors, no fighting the rail. The bracket clamps straight onto the Base Rack dovetail with a top plate and bottom plate, and your awning drops onto the built in indexing pin. Undo one thumb screw and the awning comes off. Drop it back on and nip it up when it is time to head out.
Over Engineered On Purpose
Most awning brackets are folded from 3mm and hope for the best. This one is cut from 5mm and 8mm 304 stainless steel, welded into a three plate clamp and finished in a hard wearing textured black powder coat. At 3.6kg per bracket it is the heaviest duty bracket in the Land Raxx range, built to carry big 270 awnings on corrugations without complaint. You will not think about this bracket again after you fit it. That is the point.
Built for the Dovetail
The top and bottom plates sandwich the rail for a rock solid clamp that spreads load across the extrusion instead of pinching a single point. Tighten it down and it stays put, without drilling a single hole.
Indexing Pin and Thumb Screw Release
Say goodbye to fiddling with bolts and loose pins. The top plate has an indexing pin machined straight into it. Your awning plate drops onto the pin and locates itself, then a knurled anti rattle thumb screw locks it down solid. To take the awning off, undo the thumb screw and lift. No tools, no rattle, nothing to lose in the dirt. Extra threaded holes take anti tamper bolts when you want it locked down for good.
Game Changing Features
- Made for the ARB Base Rack: Clamps directly to the dovetail rail, no drilling
- 5mm and 8mm Stainless Steel Construction: Over engineered for strength and durability
- Three Plate Design: Awning plate, top plate and bottom plate for a full rail clamp
- Built In Indexing Pin: Awning plate locates itself, no loose pins
- Knurled Anti Rattle Thumb Screw: Awning on or off in seconds, no tools
- Anti Tamper Ready: Threaded holes for anti tamper bolts
- Hard Wearing Powder Coat Finish: Built for salt, dust and sun
- 5 Year Structural Warranty: Backed by Land Raxx
Pre order details: the first batch is 50 units and ships 30 October 2026. Pre orders ship in the order they were placed. Payment is taken at checkout.
Trademark notice: ARB and ARB Base Rack are trademarks of ARB Corporation Limited. Land Raxx is not affiliated with, endorsed by or sponsored by ARB. These names are used only to describe which rack this bracket is designed to fit. No infringement is intended. This is an independently designed and manufactured Land Raxx product.
WARRANTY
WARRANTY
What's Covered:
- Brackets (metal components): 5 year warranty against structural defects or failure under normal use.
- Pins and fasteners: 12 month warranty.
- Powder coating: Not covered due to normal wear and exposure.
What Voids the Warranty:
- The brackets are misused, abused, or installed incorrectly.
- The brackets are modified in any way, including welding or retrofitting additional parts.
- The failure is due to third party components (e.g. roof rack rails, bolts, awning side rails) that are not compatible or structurally adequate.
Important Installation & Usage Requirements:
- Always verify that your roof rack is rated to handle the combined load of the brackets and awning. If unsure, check with ARB.
- Use guy ropes and poles at all times when deploying an awning, even if it is marketed as freestanding. Wind gusts can cause serious damage.
- Use only correct bolts or channel nuts that match the awning's T slot or mounting system.
Note: Our brackets are load rated to 50kg per bracket, but your setup is only as strong as its weakest link.
Warranty Claims:
- Proof of purchase is required.
- If your claim is approved, Land Raxx will reimburse reasonable return shipping costs and provide a replacement or refund at our discretion.
- For support, contact us at info@landraxx.com.
SPECS
Frequently Asked Questions
When will my pre order ship?
When will my pre order ship?
The first batch is 50 units and ships 30 October 2026. Pre orders ship in the order they were placed and you'll get tracking by email or SMS the moment yours is on its way. Your price is locked in at checkout.
Will this fit my ARB Base Rack?
Will this fit my ARB Base Rack?
Yes. The bracket is built specifically for the ARB Base Rack and clamps directly to the dovetail rail using the top and bottom plates. No drilling and no adaptors. It fits any Base Rack size.
How does the quick release actually work?
How does the quick release actually work?
The top plate has an indexing pin machined into it. Your awning plate drops straight onto that pin and locates itself, then a knurled anti rattle thumb screw locks it down. To take the awning off, undo the thumb screw and lift. No push pins to lose, no tools, no rattle. If you want it secured for good, there are extra threaded holes for anti tamper bolts.
Is it compatible with my awning?
Is it compatible with my awning?
The awning plate locates on a built in indexing pin and locks down with a knurled anti rattle thumb screw. It has been engineered for the heaviest 180° and 270° awnings including Outback, The Bush Company, Kings and Bushwakka. As long as your awning has a backing plate with two T slot channels, it will work.
What's the load rating?
What's the load rating?
Each bracket is rated to 50kg. The clamp spreads load across the Base Rack extrusion rather than pinching a single point. Your overall setup is only as strong as its weakest link, so check the Base Rack's rated load with ARB and stay within it.
What are the brackets made from?
What are the brackets made from?
5mm and 8mm 304 stainless steel, powder coated in a textured hard wearing black finish. All fasteners and the thumb screw are stainless as well. At 3.6kg per bracket this is the heaviest duty bracket in the Land Raxx range.
Do I need two or three brackets?
Do I need two or three brackets?
Two brackets suit most 180 and 270 awnings up to around 2.5m. Go with three for larger 270 awnings, heavy awnings or serious off road use where you want an extra point of support against both downward load and wind lift.
